下出式高速聯動線糊箱-下折

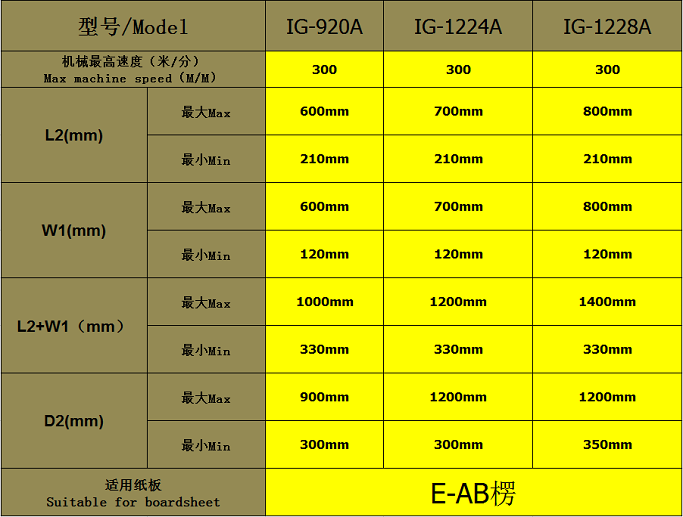

機器型號

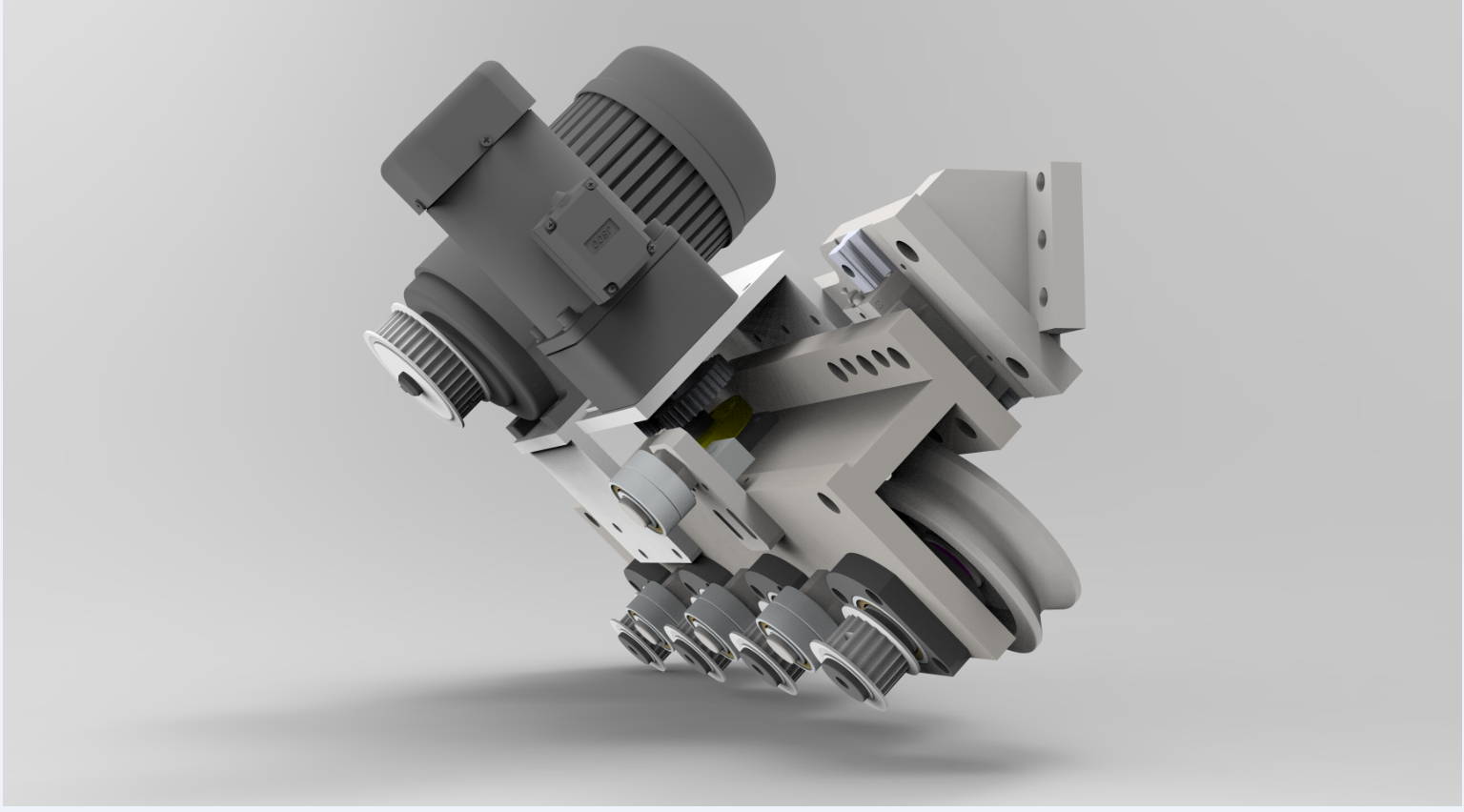

粘糊系統

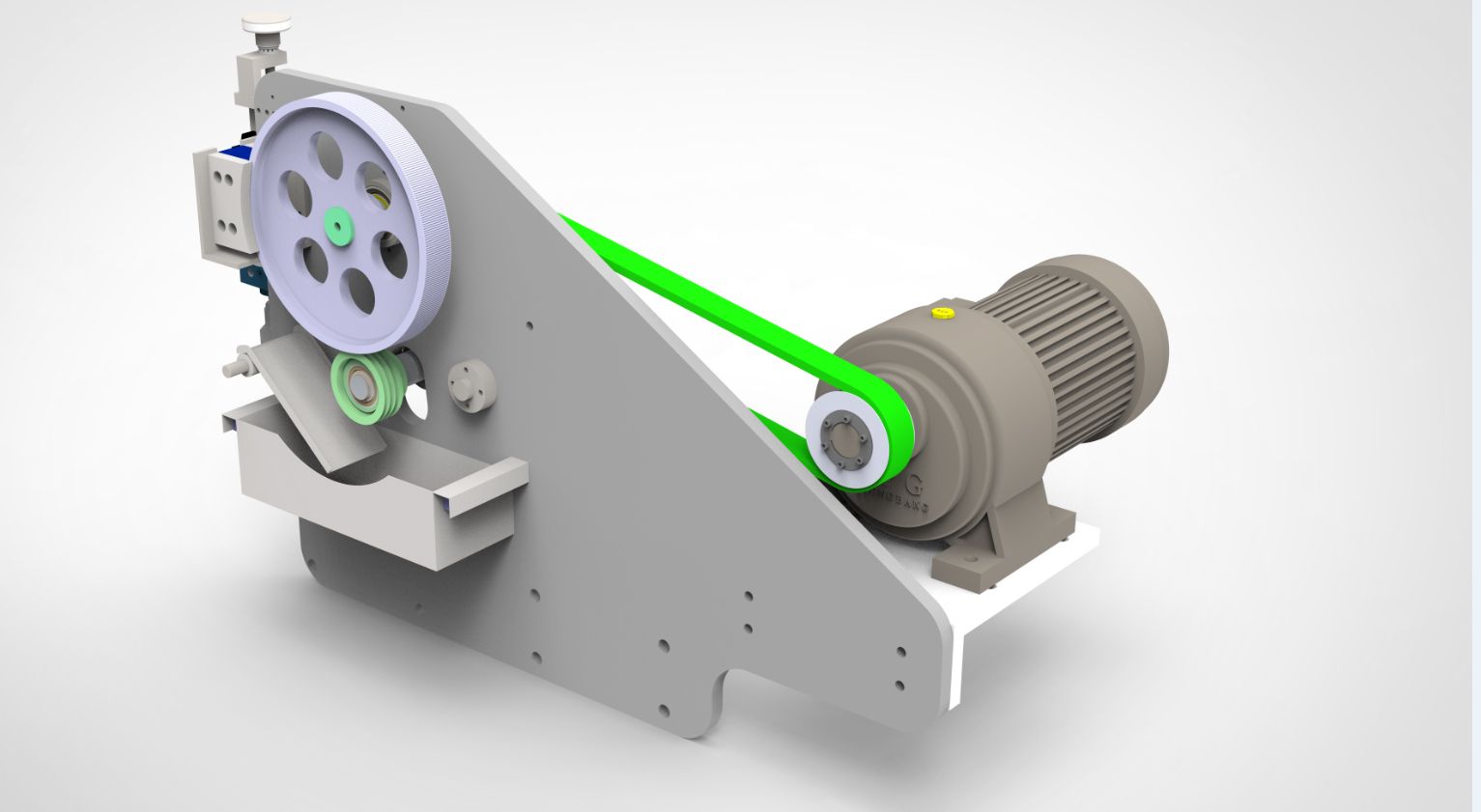

滾膠ROLLING GLUE（獨立電機驅動）

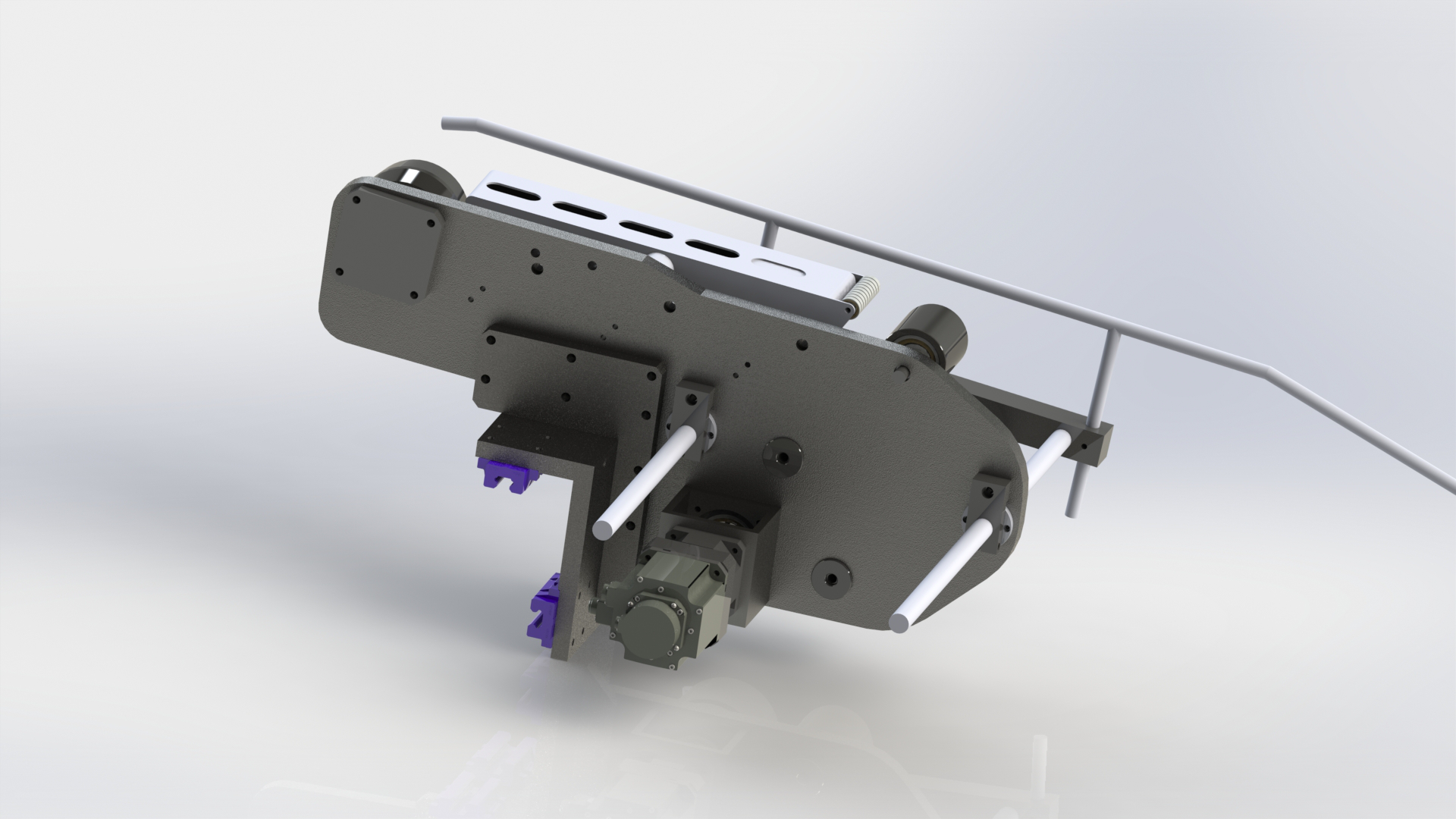

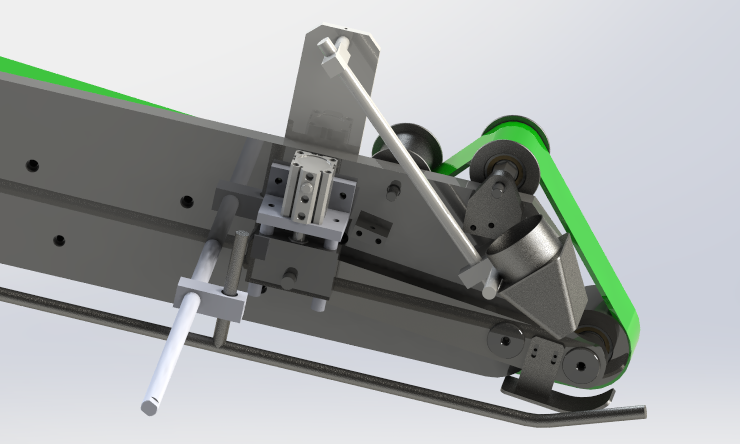

折紙部分

①剛性強，穩定性好的高精度折疊梁適合高速行駛。
RIGID STRENGTH ,STEADY FOLING BEAM , COMFORT FOR HIGH SPEED RUNNING
②每側折梁有多組成型輪，能更好的控制紙箱的成型。
EVERY BEAM SIDE HAS CORRECT WHEEL,TO ENSURE CARDBOARD SHAPING
③折梁中部有90°整形輪，控制折彎角度
IN THE MIDDLE OF FOLDING BEAM,THERE’S CORRECT WHEEL TO CONTROL THE FOLDING ANGLE
④下皮帶通過電機控制可單獨控制速度差，用以矯正紙板剪刀差
LOWER BELT THROUGH MOTOR CONTROL THE SPEED DIFFERENCE,TO CORRECT THE SCISSORS DIFFERENTIAL.
⑤主皮帶采用吸風帶傳送，防止紙板滑動歪扭。
MAIN BELT ADOPT SUCTION CONVEYOR,TO AVOID CARDBOARD

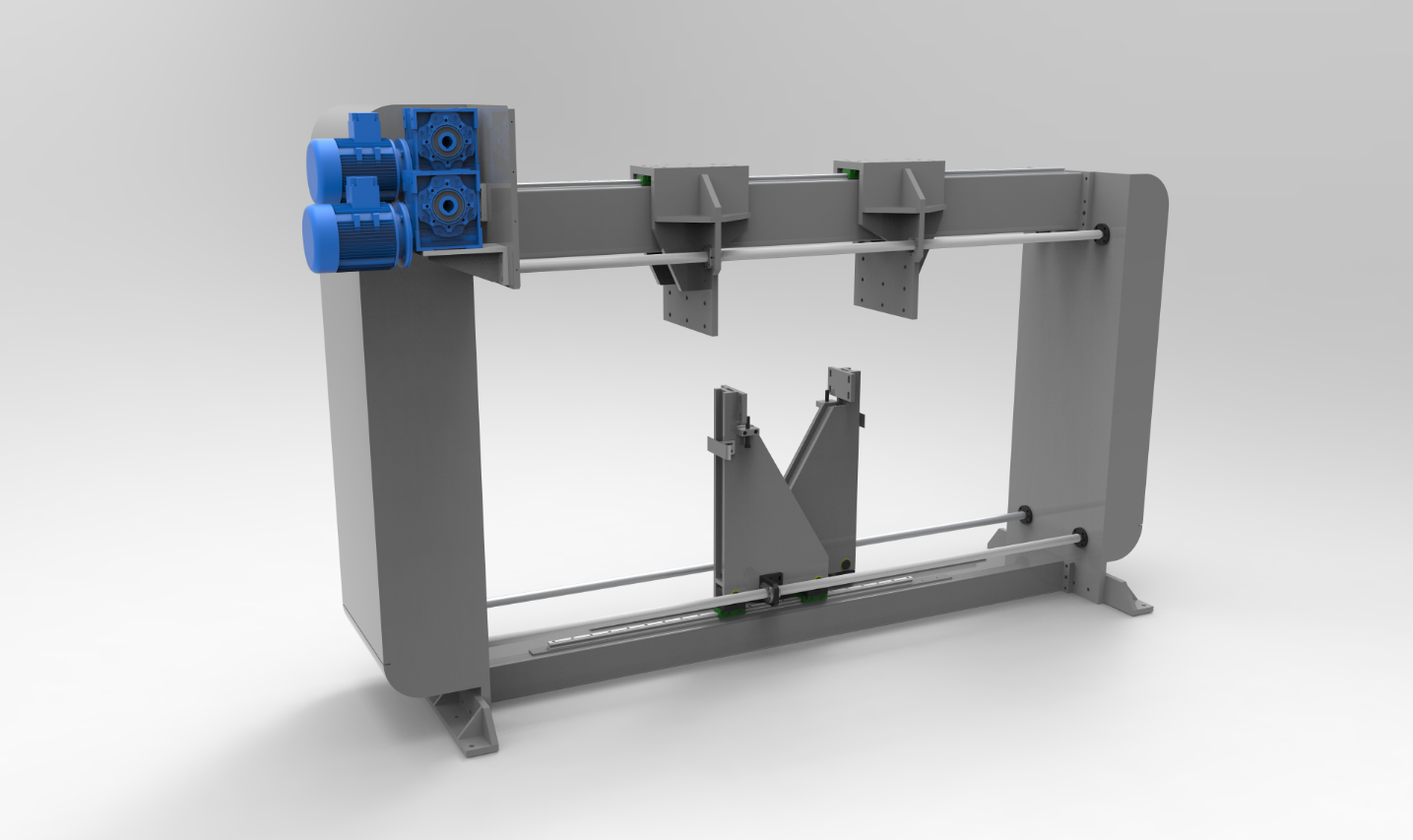

⑥中間龍門結構，更好的改善折梁在高速運行時的穩定性。
GANTRY STRUCTURE,TO ENSURE HIS STABLE WHEN HIGH SPEED RUNNING

運行部分

① 所有同步帶傳動結構簡單，噪音低，運轉平穩，振動小
ALL THE SYNCHRONIZATED BELT CONVEYOR STRUCTURE SIMPLE,LOW NOISE ,STEADY,LOW VIBRATION
② 活動部件采用絲杠和直線導軌
MOVING PART ADOPT LEAD SCREW AND LINEAR GUIDE RAIL

計數輸出部

①光電傳感器精確計數，高速運行時完成精確計數
PHOTOSESOR COUNTING ACCURATE, HIGH SPEED RUNNING TO ACHIVE COUNTING ACCURATE
②高速精準控制堆疊數量
ACCURATE CONTROL STACKER QUANTITY
③按照堆疊設定張數由氣動推板推出
CARTON OUT BY AIY CYLINDER BOARD
④可隨時調整方向的強大風壓防止紙箱彎翹
ADJUST WIND PRESSURE AT ANY TIME ,TO AVOID BOX CURVING
⑤底板電動移動調整（自動或手動）根據箱子的規格
BASEBOARD MOVMENT BY ELECTRICAL ,DEPAND ON BOX SIZE

注：產品的參數變動和機構改良，恕不另行通知。
